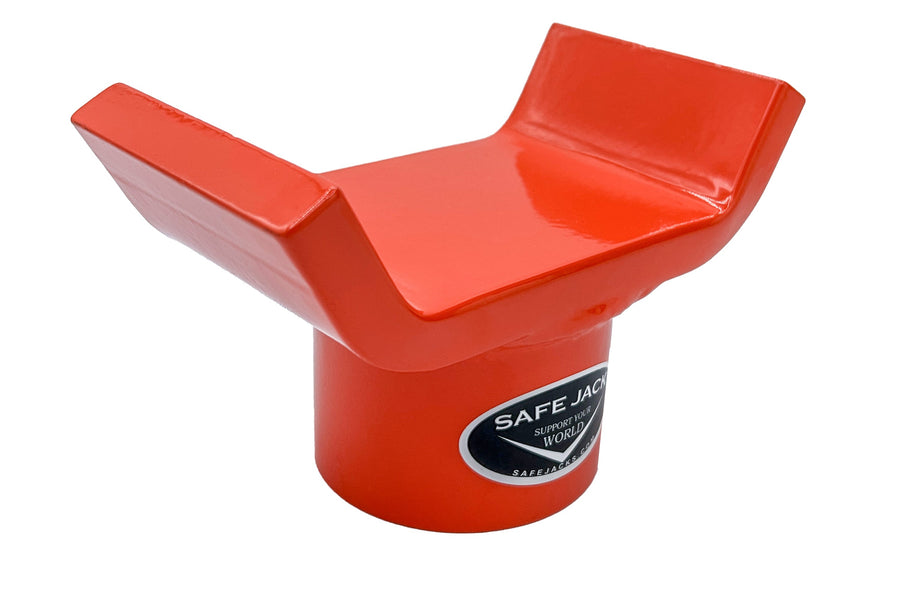

20 Ton 6" Universal Lift Pad
* "6-inch" refers to the diameter of the axle, not the Lift Pad.
The Safe Jack 6-inch Universal Lift Pad is best used under rounded surfaces up to 6 inches in diameter, such as the axles of semi-trucks and trailers. Its slim design makes for easy placement, and it's designed to integrate seamlessly with our Jack Extensions. By utilizing Safe Jack's Lift Pads, safety is greatly increased compared to the small contact area of your bottle jack's saddle. The pad offers expansive load support, distributing weight over a broader surface area. This augmented contact area bolsters stability and minimizes load force on the lift point. Moreover, the pad's size and configuration diminish the likelihood of slipping or tipping while jacking against a rounded surface. Cradle width is 6 inches and cradle depth is 3 inches.
Safe Jack utilizes the Extension Screw Collar to create a secure engagement for the Extensions and Lift Pads, as well as to maximize the available stroke to an additional 1.5 inches. These premade Extension Screw Collars are measured specifically for the bottle jack brands we carry. If you have your own bottle jack you wish to use instead, you may need to purchase a Custom Extension Screw Collar. If you opt out of purchasing a Custom Extension Screw Collar altogether, the adapters may still work, but you will not achieve the additional 1.5 inches of stroke. The 20-ton adapters will fit over a bottle jack saddle diameter of 1.75 inches - 2.25 inches (44.45 mm - 57.15 mm.) If the hydraulic cylinder (ram) is significantly smaller than this, we advise against using the adapters without an Extension Screw Collar, as the point of engagement will be unstable.
- Fits over bottle jacks with 1.75 inches - 2.25 inches (44.45 mm - 57.15 mm) diameter saddle
- Use on axles and rounded surfaces 2 inches - 6 inches in diameter (50.8 mm - 152.4 mm)
- Use on flat or box tubing up to 3.25 inches (82.55 mm)
- 2 inches of internal engagement
- Cradle width is 6 inches and cradle depth is 3 inches
- Steel construction
- Durable powder coat finish
- Compatible with most bottle jacks
- Numerous stacking combinations with other Safe Jack Extensions & Lift Pads
- Made in the USA
This part performs as advertised and makes lifting my trailer much safer
The 20 ton lift pad is great quality. I use it with a 12 ton US Jack due to the ram size.
The universal lift pad worked great on my class A motor-coach rear axle so i could install new shocks. Wish i had ordered the 7”, but the 6” worked. Great experience! Very happy and order additional products in the near future.
I do my own car repairs at home. I bought this 20 ton Universal Lift Pad for use with my electric hydraulic jack and it worked as advertised. It fits the jack perfectly and makes it more stable and safer to use. The lift pad is beautifully crafted and is made of very high quality material. I highly recommend it to anyone needing a lift pad.
Exactly as advertized. Beautifully made, very functional. Thank you.
