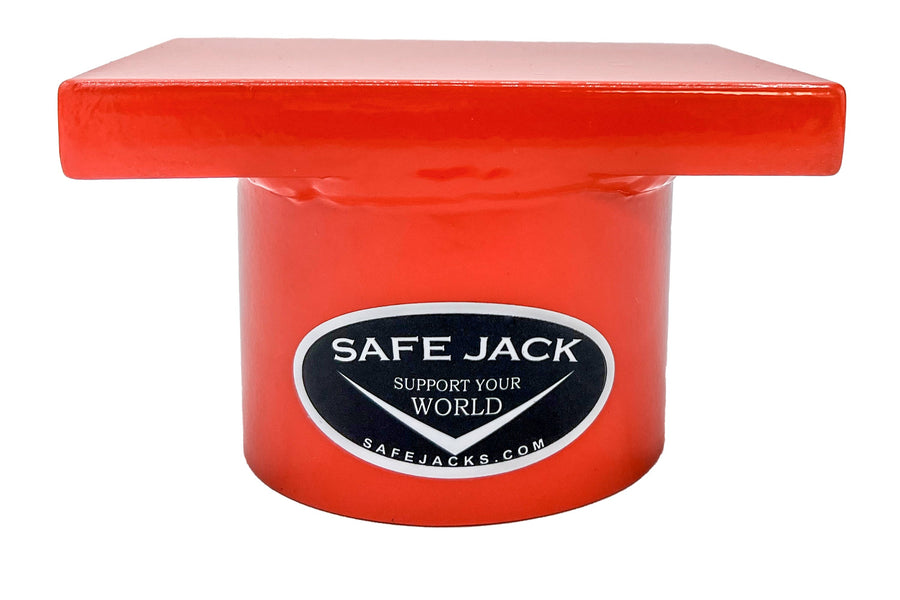

20 Ton Flat Pad

Safe Jack

$ 79⁰⁰

Suggested Add-on:

20 Ton Extension Screw Collar

The Safe Jack Extension Screw Collar (ESC) is a device made from highly durable PLA carbon fiber that wraps around your bottle jack’s extension screw, acting as the universal, secure engagement for our Extensions and Lift Pads.

Add item to cart

PN: 37330
UPC: 854185005592

Enhance lifting safety with the Safe Jack Flat Bottle Jack Lift Pad. Adding this 4-inch x 3-inch Lift Pad to the top of your bottle jack results in a significant pressure reduction, offering greater security, and the ample pad size significantly reduces the risk of slipping or tipping. When combined with our Extension Screw Collars, the easy slip-on design of our Lift Pads stacks seamlessly atop our Bottle Jack Extensions or the jack itself.

Safe Jack utilizes the Extension Screw Collar to create a secure engagement for the Extensions and Lift Pads, as well as to maximize the available stroke to an additional 1.5 inches. These premade Extension Screw Collars are measured specifically for the bottle jack brands we carry. If you have your own bottle jack you wish to use instead, you may need to purchase a Custom Extension Screw Collar. If you opt out of purchasing a Custom Extension Screw Collar altogether, the adapters may still work, but you will not achieve the additional 1.5 inches of stroke. The 20-ton adapters will fit over a bottle jack saddle diameter of 1.75 inches - 2.25 inches (44.45 mm - 57.15 mm.) If the hydraulic cylinder (ram) is significantly smaller than this, we advise against using the adapters without an Extension Screw Collar, as the point of engagement will be unstable.

Purchase a Custom Extension Screw Collar

Purchase a Safe Jack 20-ton Extension Screw Collar (Premade to fit the jacks we carry)

Purchase an approved 20-ton Bottle Jack

Features

Fits over bottle jacks with 1.75 inches - 2.25 inches (44.45 mm - 57.15 mm) diameter saddle
4-inch x 3-inch (101.6 mm x 76.2 mm) surface area
Use on any flat surface
2 inches of internal engagement
Steel construction
Durable powder coat finish
Compatible with most bottle jacks
Numerous stacking combinations with other Safe Jack Extensions & Lift Pads
Made in the USA

VIDEOS:

Arrived fast and are great

Exactly what I needed!

20 Ton Flat Pad

Flat pad

Haven't used it yet, but purchased full 20 ton set in the spring, and realized we needed the flat pad to use on our fithwheel, everything looks great nice quality and piece of mind if ever needed.

The right tool for the job

Had to jack up the main beam under my house to level it and was using a 20 ton bottle jack with a 4x6 post. I tried using a piece of 3/8 plate steel between the post and jack to prevent the jack from driving into the post and the steel plate bent. This jack pad was exactly what I needed to provide a stable jack top for the 4x6. Not the cheapest option, but these guys shipped fast and it did the job!
