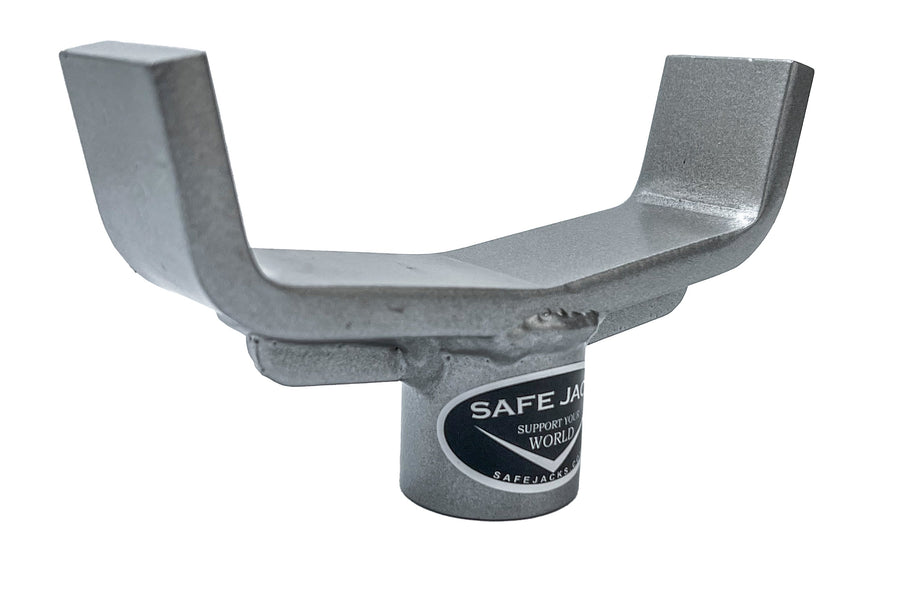

6 Ton 5" Universal Lift Pad

Safe Jack

$ 57⁰⁰

PN: 37132
UPC: 854185005455

The Safe Jack 5-inch Universal Lift Pad is best used under rounded surfaces up to 5 inches in diameter, such as your vehicle's axle, or square frame. This pad is a versatile fit for various applications, including light trucks, 4X4 vehicles, and agricultural equipment. Additionally, it works effectively for lifting against frame members and rock rails. Its slim design makes for easy placement, and it's designed to integrate seamlessly with our Jack Extensions. By utilizing Safe Jack's Lift Pads, safety is greatly increased compared to the small contact area of your bottle jack's saddle. The pad offers expansive load support, distributing weight over a broader surface area. This augmented contact area bolsters stability and minimizes load force on the lift point. Moreover, the pad's size and configuration diminish the likelihood of slipping or tipping while jacking against a rounded surface. Cradle width is 5 inches and cradle depth is 1.5 inches.

Safe Jack utilizes the Extension Screw Collar to create a secure engagement for the Extensions and Lift Pads, as well as to maximize the available stroke to an additional 1.5 inches. These premade Extension Screw Collars are measured specifically for the bottle jack brands we carry. If you have your own bottle jack you wish to use instead, you may need to purchase a Custom Extension Screw Collar. If you opt out of purchasing a Custom Extension Screw Collar altogether, the adapters may still work, but you will not achieve the additional 1.5 inches of stroke. The 6-ton adapters will fit over a bottle jack saddle diameter of 1.25 inches (31.75 mm) or less. If the hydraulic cylinder (ram) is significantly smaller than 1.25 inches, we advise against using the adapters without an Extension Screw Collar, as the point of engagement will be unstable.

Purchase a Custom Extension Screw Collar

Purchase a Safe Jack 6-ton Extension Screw Collar (Premade to fit the jacks we carry)

Purchase an approved 6-ton Bottle Jack

6-ton accessories not for use on Toyota OEM or telescoping jacks.

Features

Fits over bottle jacks with a saddle diameter of 1.25 inches (31.75 mm) or less
1.5 inches of internal engagement
Use on axles and rounded surfaces 2 inches - 5 inches in diameter (50 mm -127 mm)
Use on flat or box tubing 2 inches - 4.4 inches wide (50 mm - 101 mm)
Cradle width is 3 inches and cradle depth is 1.5 inches
Steel construction
Durable powder coat finish
Compatible with most bottle jacks
Compatible with Safe Jack 6-ton Bottle Jack Extensions
Compatible with Safe Jack 12 & 20-ton Bottle Jack Ram Adapters
Made in the USA

VIDEOS:

Safe Jack

Well the title says it all! Does it well does it simple. Do yourself a favor and place the spacer on the back with the O ring for storage. You will forget it when you need it so just store it connected

Great Product

Handy Pad for Suspension Work

I purchased this 6 Ton 5” Universal Pad as an addition to the Bottle Jack Recovery Kit. It was not for 6 ton rating, but rather for the size and the shape of the pad as I wanted to support the axle by the brake rotor to simulate a “wheel on the ground” while tightening the shocks bolts. It was perfect for that.

Caution: If you are to try the same, make sure to fasten the rotor with the lug nuts before attempting lifting.
