Supercharge your stability by adding this adapter directly to your 12-ton jack ram. Creates a rock-solid, positive engagement point that stops stacked extensions from sliding or tilting under maximum weight loads.
Our 12-ton Bottle Jack Ram Adapter simply slides over the top of a bottle jack's extension screw once the Safe Jack Extension Screw Collar has been installed. This then couples with any combination of our smaller 6-ton Bottle Jack Extensions and Lift Pads for a variety of lifting scenarios.
Safe Jack utilizes the Extension Screw Collar to create a secure engagement for the Extensions and Lift Pads, as well as to maximize the available stroke to an additional 1.5 inches. These premade Extension Screw Collars are measured specifically for the bottle jack brands we carry. If you have your own bottle jack you wish to use instead, you may need to purchase a Custom Extension Screw Collar. If you opt out of purchasing a Custom Extension Screw Collar altogether, the adapters may still work, but you will not achieve the additional 1.5 inches of stroke. The 12-ton adapters will fit over a bottle jack saddle diameter of 1.25 inches - 1.75 inches (31.75 mm - 44.45 mm.) If the hydraulic cylinder (ram) is significantly smaller than this, we advise against using the adapters without an Extension Screw Collar, as the point of engagement will be unstable.
Purchase a Custom Extension Screw Collar
Features
- Welded steel construction
- Durable powder coat finish
- Compatible with Safe Jack 6-ton Bottle Jack Extensions & Lift Pads
- Compatible with most bottle jacks
- Numerous stacking combinations with other Safe Jack Extensions & Lift Pads
- Made in the USA
Includes

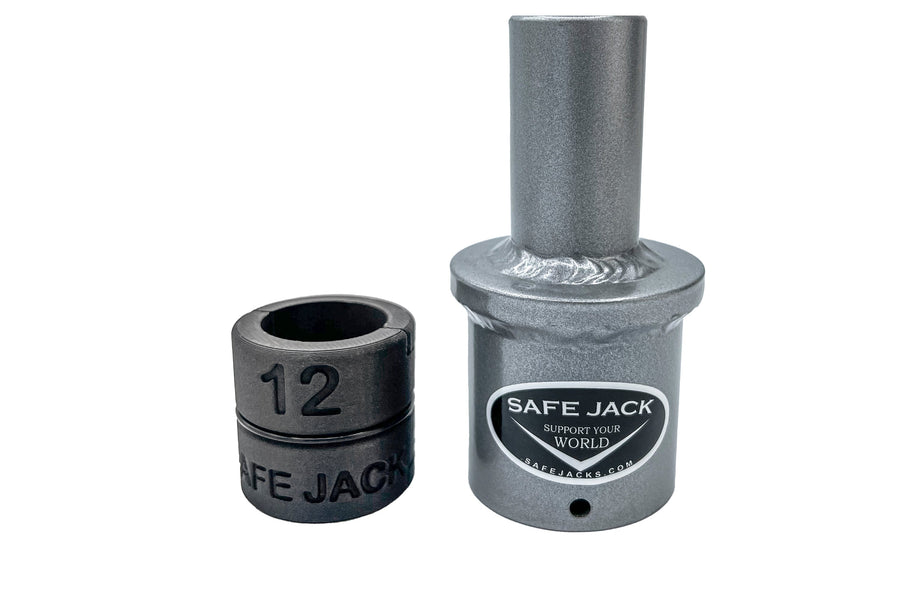

- 1 ea. 12-Ton Bottle Jack Ram Adapter
- 1 ea. 37M-ESC12 12-ton Bottle Jack Extension Screw Collar
